Part no.: A-SUK-5HP18/19-DB
sub kit, D-brake piston
Bigger picture
In stock
Autoline
Autoline
Identification
5HP18, 5HP19, 5HP19FL, 5HP19FLA, 5HP19HL, 5HP19HLA - D-brake: piston
5HP18, 5HP19, 5HP19FL, 5HP19FLA, 5HP19HL, 5HP19HLA - D-brake: piston
AUTOLINE D-Brake seal kit for all 5HP19 applications

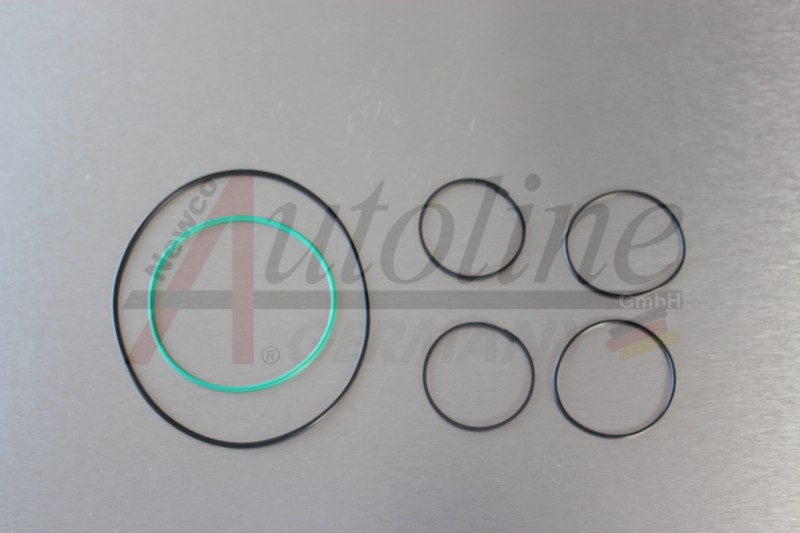

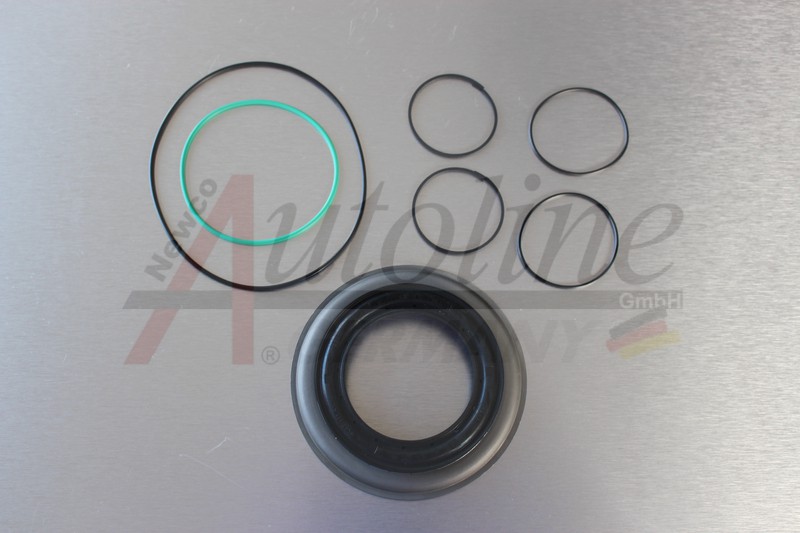

the OE inner piston ring is green. We are using the black version only - the different colours have been used by the transmission manufacturer probably in order not to mix up the o-ring with other o-rings of similar dimensions in their sub-kits. The colour has no influence on the function of the product.
Further seals for the D/G carrier you will find in our AUTOLINE kits A-SUK-5HP19FL/A-DGC and A-SUK-5HP19HL/A/BM-DGC
the OE inner piston ring is green. We are using the black version only - the different colours have been used by the transmission manufacturer probably in order not to mix up the o-ring with other o-rings of similar dimensions in their sub-kits. The colour has no influence on the function of the product.
Further seals for the D/G carrier you will find in our AUTOLINE kits A-SUK-5HP19FL/A-DGC and A-SUK-5HP19HL/A/BM-DGC
D-brake: piston

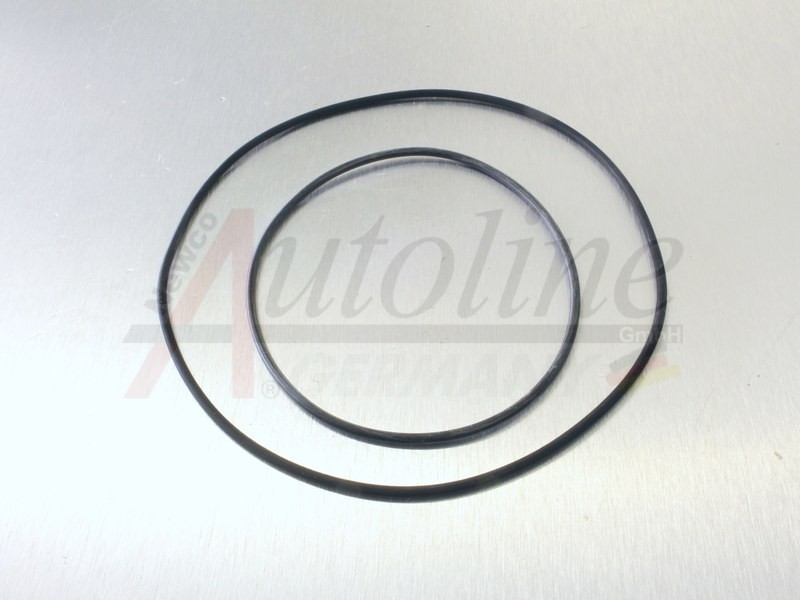

1 inner o-ring for piston
1 outer o-ring for piston
1 outer o-ring for piston
1
5HP18, 5HP19, 5HP19FL, 5HP19FLA, 5HP19HL, 5HP19HLA
This part is part of the following kits
