transfer case seal kit

this seal kit is used in 0A6 transfer case / angle drive / differential which are directly flanged to the transmission - in combination with 0A6 6-speed manual transmission, 09M (TF62SN) 6-speed automatic transmission, 0BH 7-speed DCT - all wheel drive / 4x4 (4-motion) - 2008-up - Audi Q3, RS3, TTRS - Seat Alhambra - VW Sharan, Tiguan - for more precize information check our application list A-TCK-0A6

some 0BH and 0DL applications use a 0CP transfer case / angle drive - for those, please order our Autoline seal kit A-TCK-0CP

PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.

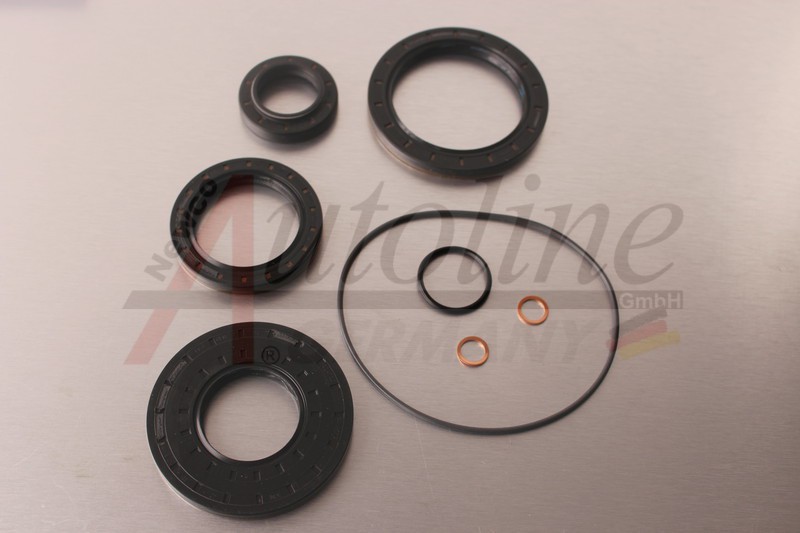

transfer case / angle drive / differential

1x o-ring for axle flange shaft, right
1x oil seal for right axle
1x oil seal for left axle, inner - inner diameter 31 mm
1x oil seal for left axle, outer - inner diameter 65 mm
1x oil seal for rear flange
1x o ring for rear flange
2 copper seal for oil drain/screw plugs

1

0A6, 0BH, 09M
