Part no.: B-FDK-50-4X-99
friction disc kit
Bigger picture
On request
Alto
Alto
Identification
AW 50-40LE, AW 50-42 LE - Large C3 - 99-up - 28 discs
AW 50-40LE, AW 50-42 LE - Large C3 - 99-up - 28 discs
AW 50-42LE, 1999-up - 28 Allomatic yellow colour friction discs

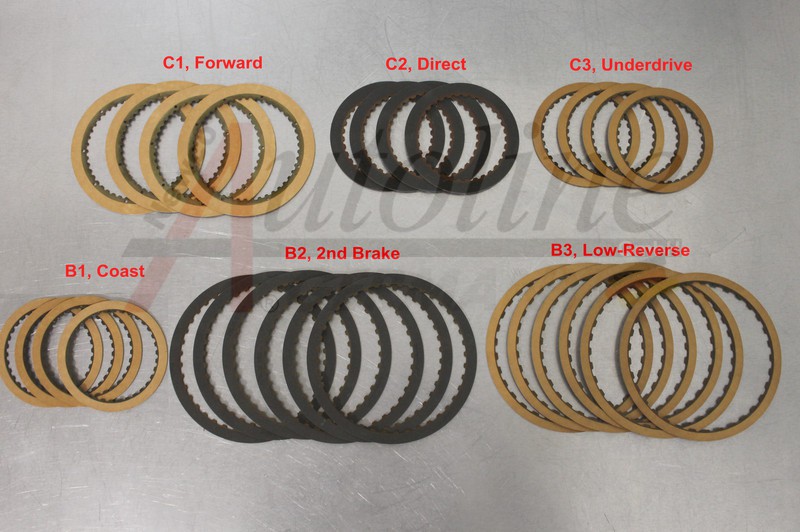

C1, forward - 46 internal teeth - 4 pcs.
C2, direct - 34 inner teeth - wave - 4 pcs. (black frict.material) - large outer diameter (4.482" / 113,84 mm)
C3, underdrive - 34 inner teeth - wave - 4 pcs.(some use less)
B1, coast - 34 inner teeth - wave - 4 pcs.(some use less)
B2, 2nd brake - 40 inner teeth - 6 pcs. (black)
B3, low-reverse - 33inner teeth - 6 pcs.(some use less)
C3, B1 use the same waved discs.
Quantity of discs to be used depends on application - our kit contains the maximum number of discs as specified by the manufacturer of the discs.
We found that there might be differences depending on the vehcile and the area of use. North-American applications might not be interchangeable with European or Asian applications and vice-versa. Therefore we also offer all available discs for these transmissions as single discs. Please make sure to check carefully what you need for your getting your job done. A catalogue showing all discs and available information can be found on our webpage in connection with the part numbers of the single friction discs and friction disc kits. "Cat-AW50-40/42-friction discs"
C1, forward - 46 internal teeth - 4 pcs.
C2, direct - 34 inner teeth - wave - 4 pcs. (black frict.material) - large outer diameter (4.482" / 113,84 mm)
C3, underdrive - 34 inner teeth - wave - 4 pcs.(some use less)
B1, coast - 34 inner teeth - wave - 4 pcs.(some use less)
B2, 2nd brake - 40 inner teeth - 6 pcs. (black)
B3, low-reverse - 33inner teeth - 6 pcs.(some use less)
C3, B1 use the same waved discs.
Quantity of discs to be used depends on application - our kit contains the maximum number of discs as specified by the manufacturer of the discs.
We found that there might be differences depending on the vehcile and the area of use. North-American applications might not be interchangeable with European or Asian applications and vice-versa. Therefore we also offer all available discs for these transmissions as single discs. Please make sure to check carefully what you need for your getting your job done. A catalogue showing all discs and available information can be found on our webpage in connection with the part numbers of the single friction discs and friction disc kits. "Cat-AW50-40/42-friction discs"
AW 50-40LE , AW 50-42LE, AF20, AF22

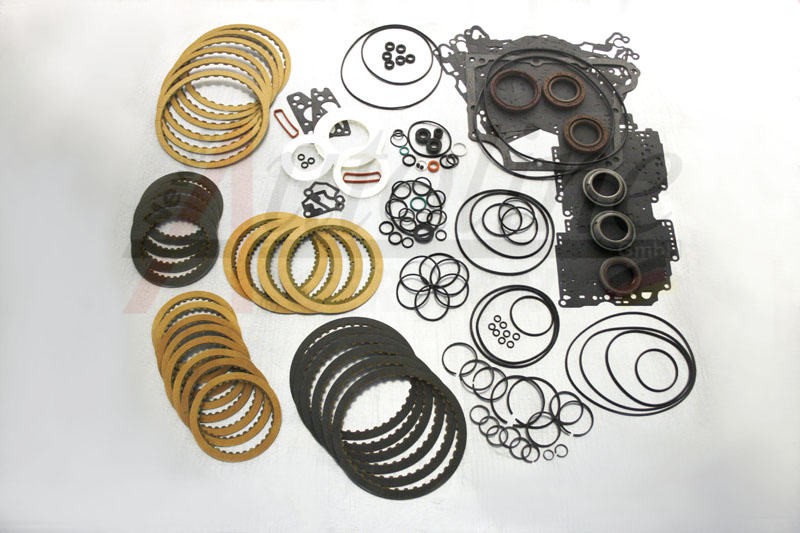

This part is part of the following kits
