ALTO steel disc kit said to fit 09G (TF60SN) 2003-up (except Transporter 2006-up which is 09K) - 19 discs

There might be discs of different thicknesses and/or diameters and/or number of teeth for C1, C2, C3 and B2 for 09G (TF60SN), 09K (TF61SN) and 09M (TF62SN) available. It is possible that the transmission manufacturer used different clutch packages in otherwise identical transmissions. This might not be realized until the transmission was opened for repair/overhaul.

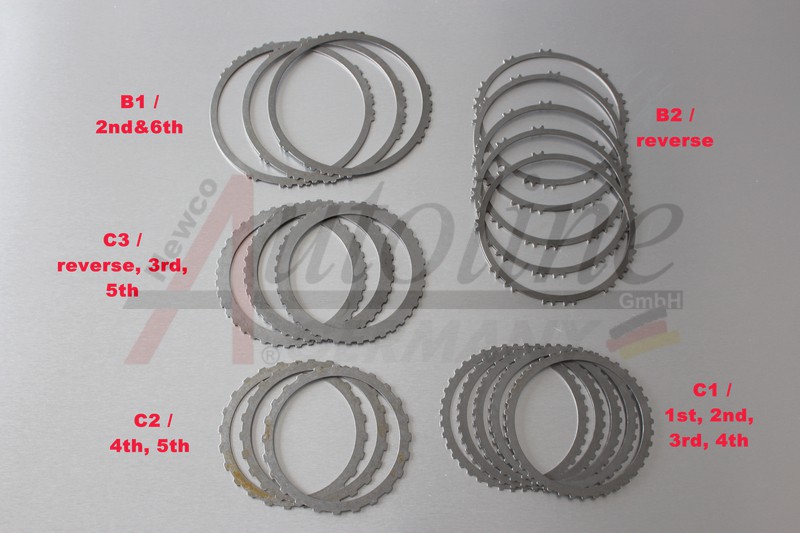

This steel kit contains:

3 steel discs - B1 (2nd&6th) - thickness 0.072" / 1,83 mm - 12 outer teeth - inner diameter 6.611 / 168 mm - our ref. B-STD-TF60-B1
5 steel discs - B2 (reverse) - thickness 0.072" / 1,83 mm - 14 outer teeth - inner diameter 6.220" / 158 mm - our ref. B-STD-TF60-B2
5 steel discs - C1 (1st, 2nd, 3rd, 4th) - thickness 0.070" / 1,78 mm - 40 outer teeth - inner diameter 5.148" / 130,75 mm - our ref. B-STD-TF60-C1
3 steel discs - C2 (4th, 5th) - thickness 0.071" / 1,80 mm - 24 outer teeth - inner diameter 5.000" / 127 mm - our ref. B-STD-TF60-C2-1,80
3 steel discs - C3 (reverse, 3rd, 5th) - thickness 0.071" / 1,80 mm - 40 outer teeth - inner diameter 5.149" / 130,8 mm - our ref. B-STD-TF60-C3

For an overview about all available steel discs see our product info "IDS-TF60-Steel Discs"

All steel discs can be ordered as single items, too.

09G, TF60SN
