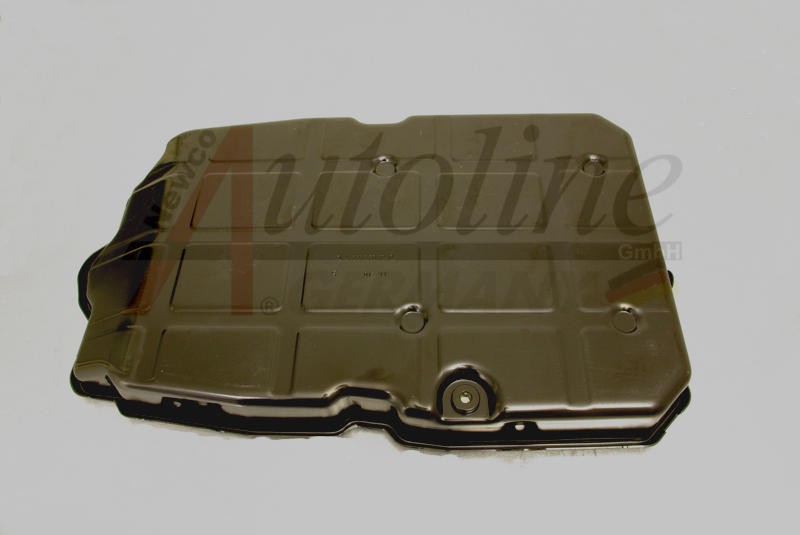

this oil pan fits for the 722.9 - 7G-Tronic transmissions. It does NOT fit for 7G-Tronic Plus.

Identification: transmission uses red ATF (oil) and has white overflow tube of approx. 47,5 mm length. The pan has 4 small dimples/hollows. Further info are to be found in our product information "IDS-722.9-Oil Pans"

ALL PRODUCT IDENTIFCATION DATA SHEETS (IDS) CAN BE FOUND ON OUR WEBPAGE: www.newco-autoline.de

please use following filter with this oil pan: OFL-722.9 or OFL-722.901-GM for the G-Model with 722.901 transmission.
please use following oil pan gasket with this oil pan: OPG-722.9
please use following overflow tube with this oil pan: OTU-722.9-251 or for the G-Model with 722.901 transmission OTU-722.9-222 (from transmission serial no. 02773965 – from 18.06.2010)

oil pan

Only for registered users

1

722.9
