Part no.: O-FRD-5L40E-2CL-ET-02

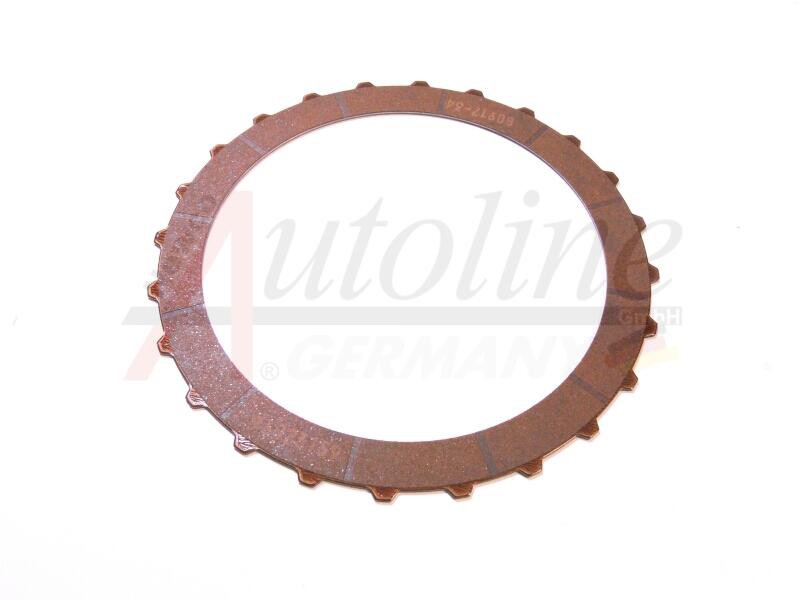

friction disc, outer teeth
Bigger picture
In stock
Dynax/Exedy
Dynax/Exedy
Identification
5L40E (M82 - A5S360R, A5S390R) - 5L50E (M22) - 2nd clutch - 2002-up
5L40E (M82 - A5S360R, A5S390R) - 5L50E (M22) - 2nd clutch - 2002-up
DYNAX single sided friction disc - supplier info: thickness 0,063" / 1,60 mm - 24 external teeth - outer diameter 5,673" / 144,1 mm - inner diameter 4,469" / 113,5 mm - Tan/brown friction material - Grooved - 2002-up
During the end of 2001 and beginning 2002 the friction disc for 2nd clutch was changed from O-FRD-5L40E-2CL-ET-99 to O-FRD-5L40E-2CL-ET-02 - as not all vehicles / transmissions were changed at the same date, please check carefully for vehicles/transmissions from that period which friction disc is required for your job.
5L40E, 5L50E use 5 of these discs in second clutch
4L40E does not have a 2nd clutch
During the end of 2001 and beginning 2002 the friction disc for 2nd clutch was changed from O-FRD-5L40E-2CL-ET-99 to O-FRD-5L40E-2CL-ET-02 - as not all vehicles / transmissions were changed at the same date, please check carefully for vehicles/transmissions from that period which friction disc is required for your job.
5L40E, 5L50E use 5 of these discs in second clutch
4L40E does not have a 2nd clutch
2nd clutch
5L40E (M82 - A5S360R, A5S390R) - 5L50E (M22)
