Part no.: TO-C34-AWF8G45-B
C3/C4 clutch
Bigger picture
On order
From new transmission
From new transmission
Identification
AWF8G45, AWF8G55 - Volvo, BMW, PSA - no warranty
AWF8G45, AWF8G55 - Volvo, BMW, PSA - no warranty

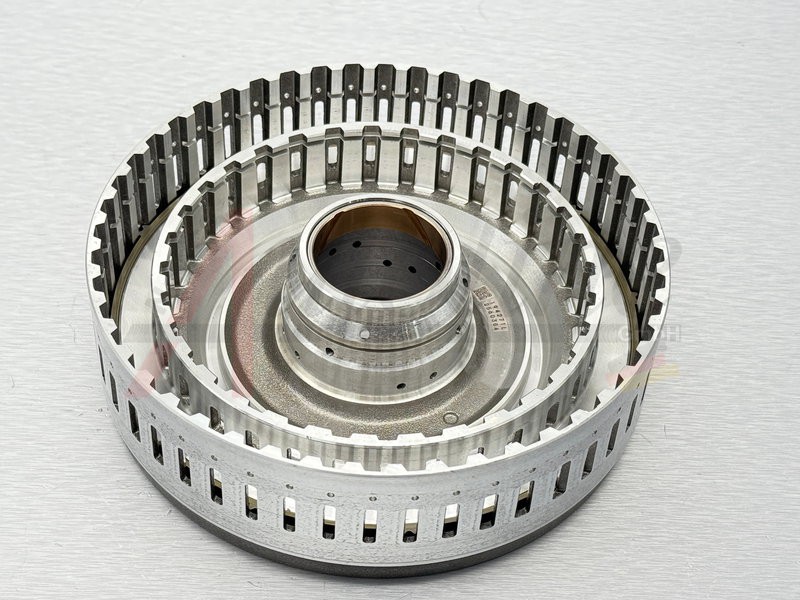

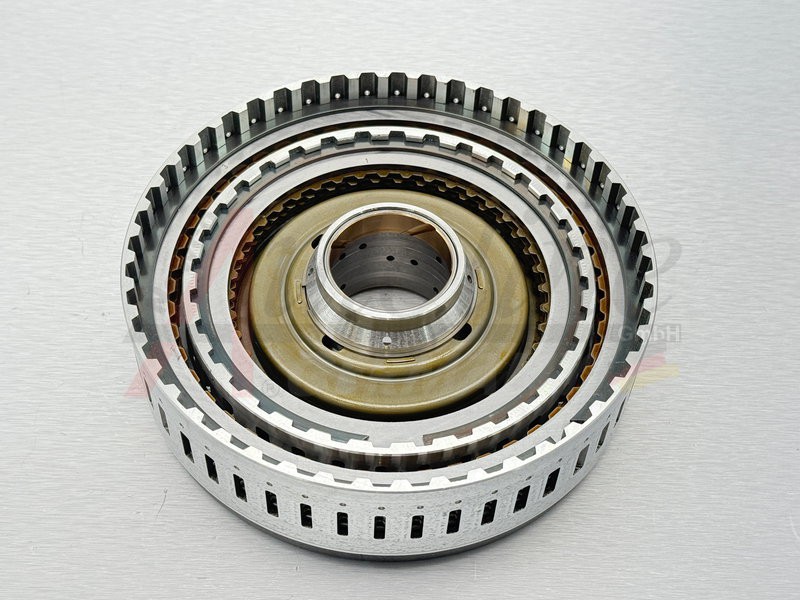

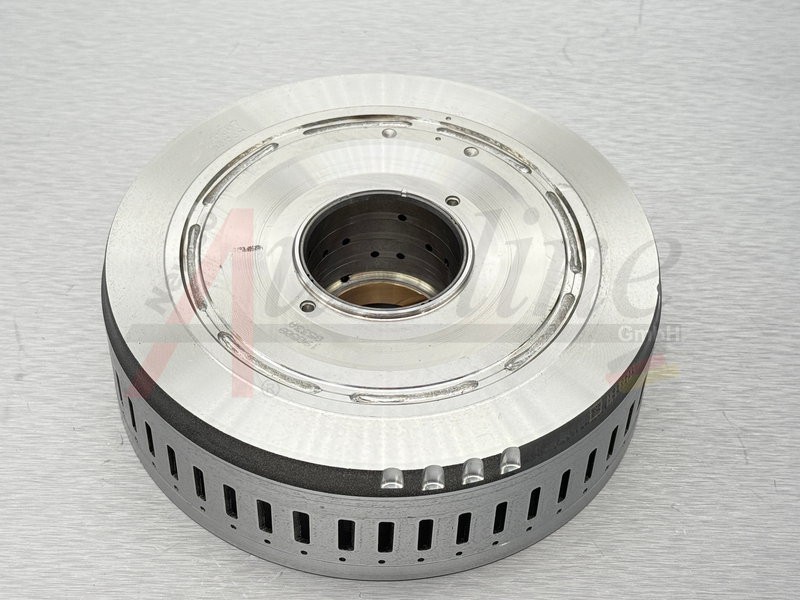

Volvo + BMW + PSA - complete C3/C4 clutch -
total carrier hight 55,35 mm

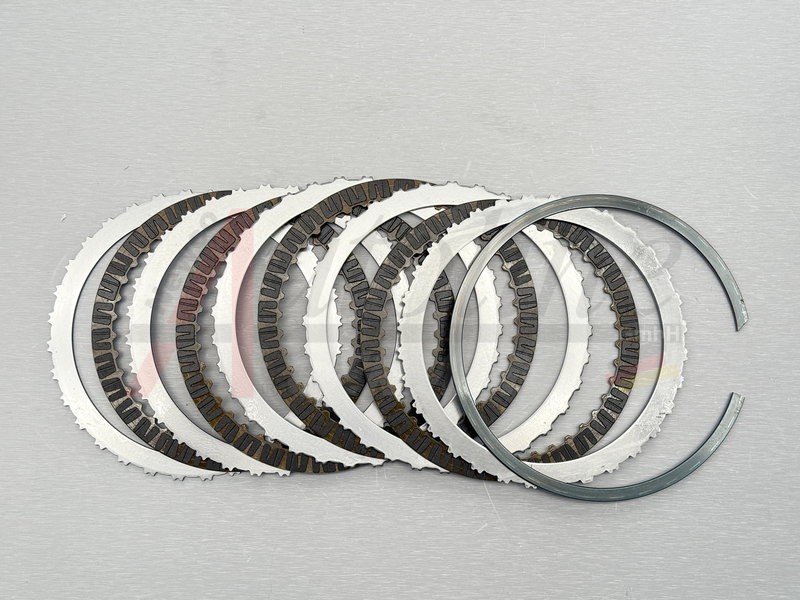

C3 - 4 friction discs, 4 steel discs, 1 end disc, top edge of retaining ring groove from top edge of carrier approx. 11.5mm, rubber-metal piston top edge from top edge of carrier approx. 32,2mm
C4 - 4 friction discs, 4 steel discs, 1 end disc, Top edge of retaining ring groove from top edge of carrier approx. 3mm
Taken from new gearboxes - no warranty - can only be ordered if goods are in stock - subject to prior sale.
Various executions of this part are available for these transmissions
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
The distinguishing features known to us to this day are stored for each article.
total carrier hight 55,35 mm
C3 - 4 friction discs, 4 steel discs, 1 end disc, top edge of retaining ring groove from top edge of carrier approx. 11.5mm, rubber-metal piston top edge from top edge of carrier approx. 32,2mm
C4 - 4 friction discs, 4 steel discs, 1 end disc, Top edge of retaining ring groove from top edge of carrier approx. 3mm
Taken from new gearboxes - no warranty - can only be ordered if goods are in stock - subject to prior sale.
Various executions of this part are available for these transmissions
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
The distinguishing features known to us to this day are stored for each article.
C3/C4
1
AWF8G45, AWF8G55 - Volvo, BMW, PSA
View this Part on the following exploded Views
