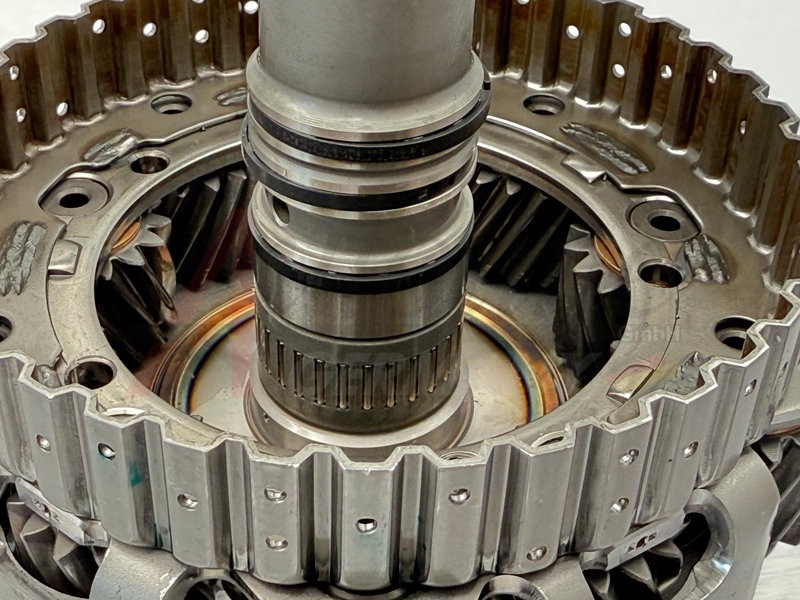

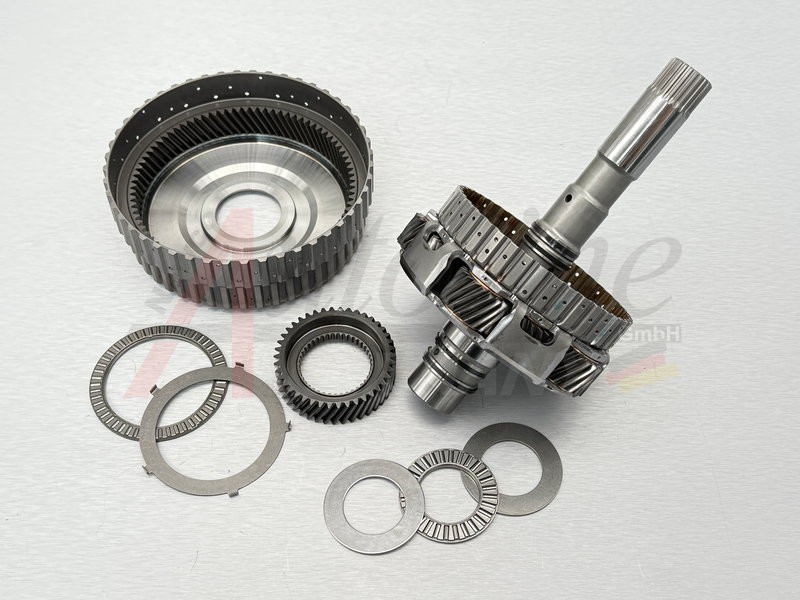

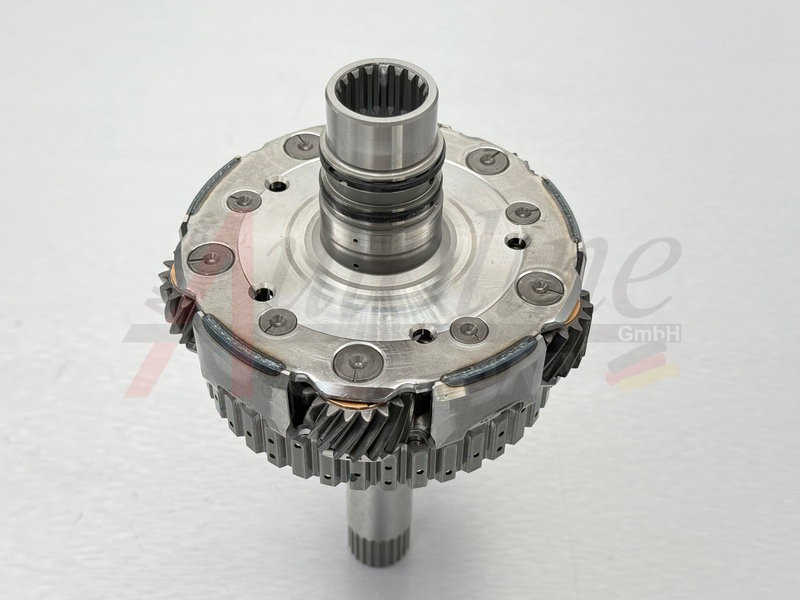

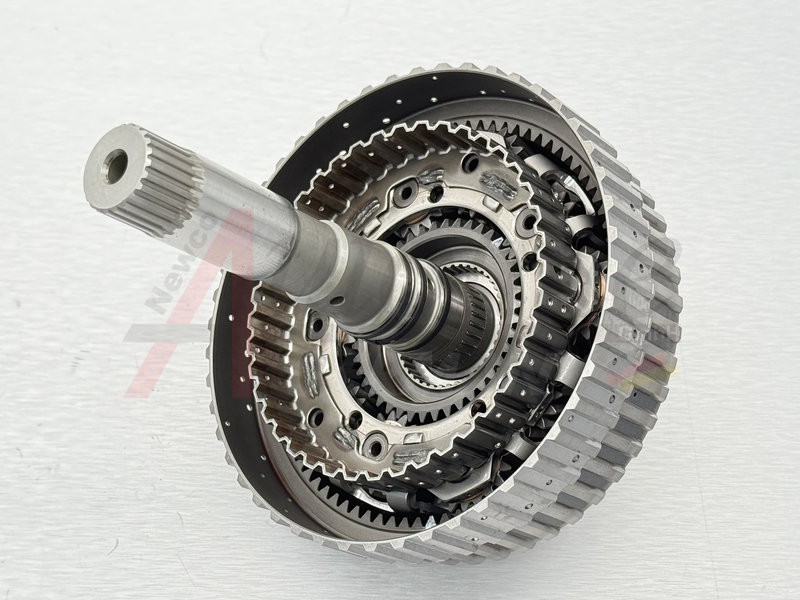

PSA - complete front planetary
total height: approx 213,5 mm
5 planetary gear pairs 18 - 1 mark /15 teeth
sun gear: 42 teeth 1 short mark, inner splining 40,
C4 height: 19,1 mm, 40 outer teeth
input shaft length: 156,85 mm
hollow gear: 82 teeth, carrier height: total approx 53,3 mm
C3 hub height: 23,5 mm, 48 teeth - 1 mark
C1 hub height: approx 22,3/25,8 mm, 48 teeth

Taken from new gearboxes - no warranty - can only be ordered if goods are in stock - subject to prior sale.

Various executions of this part are available for these transmissions

PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.

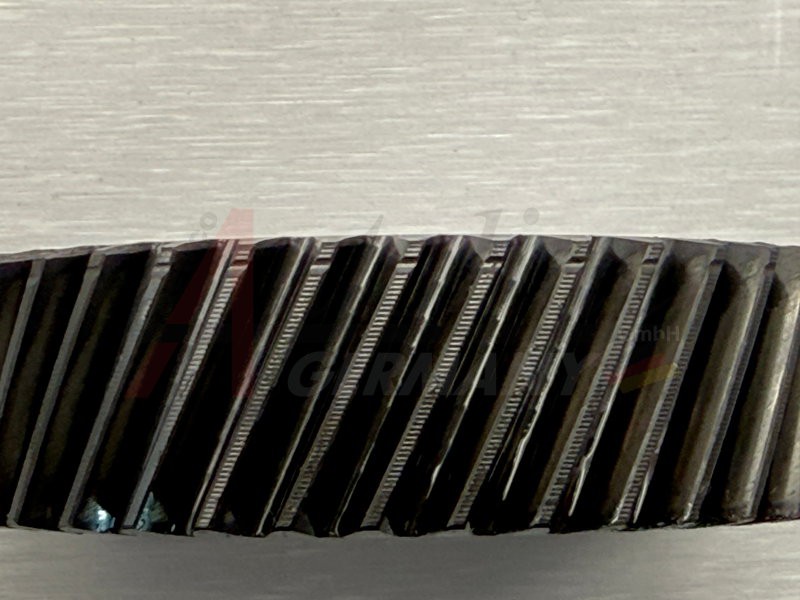

The distinguishing features known to us to this day are stored for each article.

front planetary

1

AWF8G45 - PSA
