Part no.: TO-RPS-722.9-C

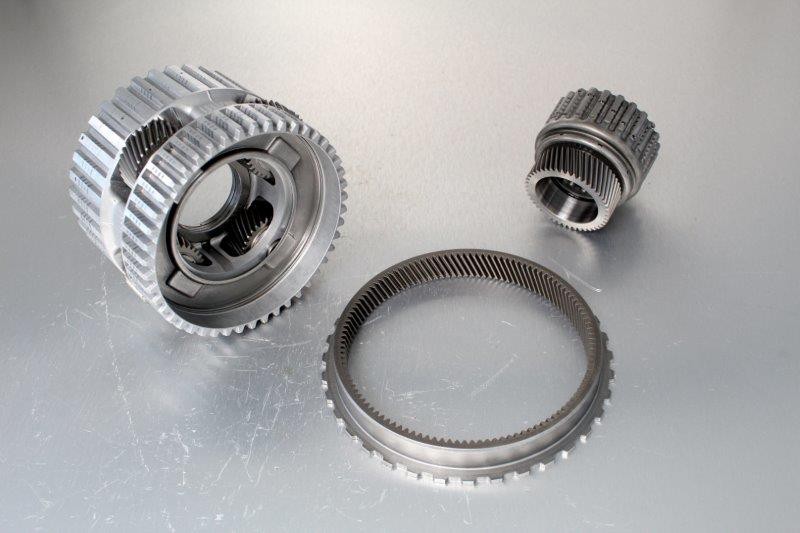

rear planetary set
Bigger picture
On request
From new transmission
From new transmission
Identification
722.9, 724.2 - no warranty
722.9, 724.2 - no warranty

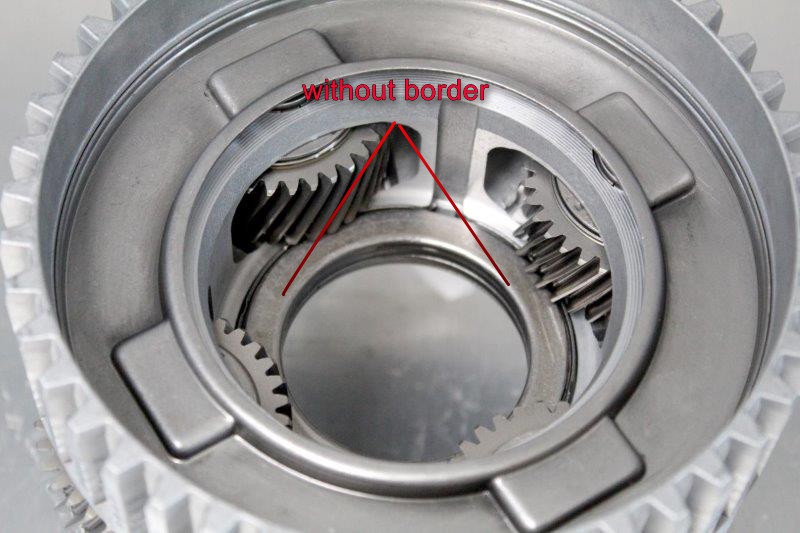

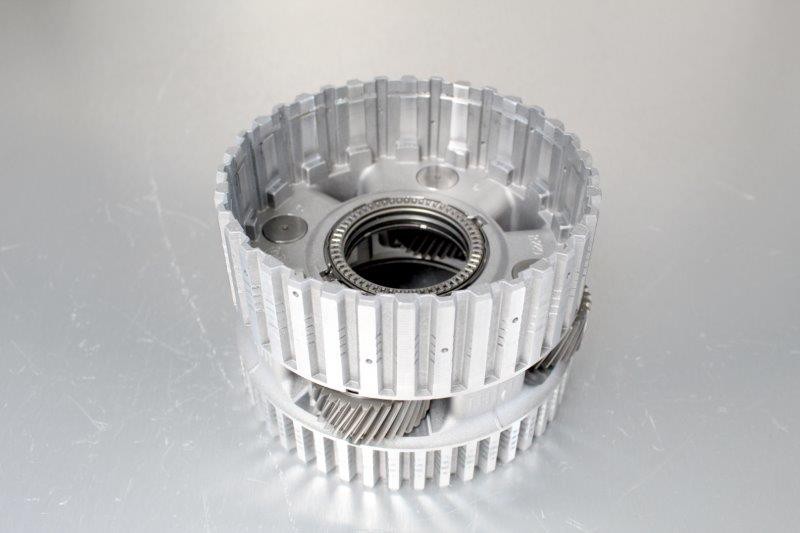

221 270 10 43 - planetary with 4 planetary gears 33 teeth each, height 107 mm, needle bearing towards sungear without edge

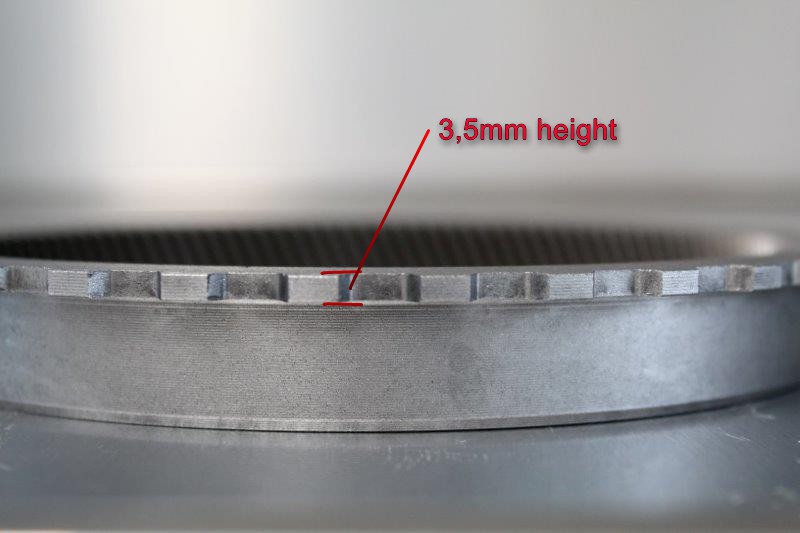

220 272 09 08 – ring gear 114 teeth, outer teeth height = 3,5mm

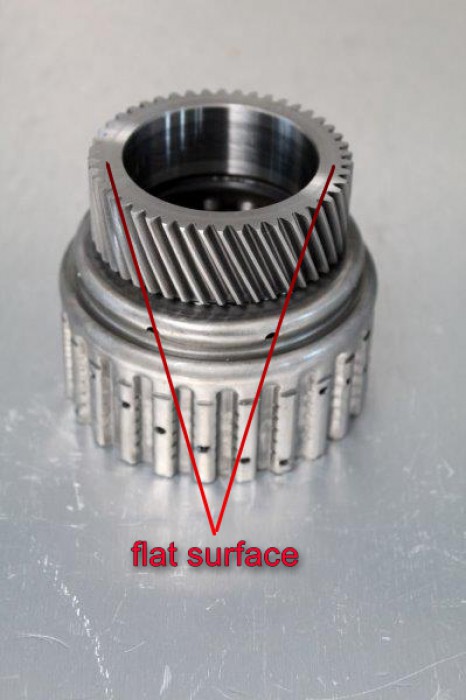

220 270 09 44 – sun gear 46 teeth, front wall with flat surface, height 73,65mm
Taken from new gearboxes - no warranty - can only be ordered if goods are in stock - subject to prior sale.
Various executions of this part are available for these transmissions
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
The distinguishing features known to us to this day are stored for each article.
220 272 09 08 – ring gear 114 teeth, outer teeth height = 3,5mm
220 270 09 44 – sun gear 46 teeth, front wall with flat surface, height 73,65mm
Taken from new gearboxes - no warranty - can only be ordered if goods are in stock - subject to prior sale.
Various executions of this part are available for these transmissions
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
The distinguishing features known to us to this day are stored for each article.
rear planetary
1
722.9, 724.2
