Part no.: TO-RPS-AWF8G45-C
rear planetary set
Bigger picture
In stock
From new transmission
From new transmission
Identification
AWF8G45 - PSA - no warranty
AWF8G45 - PSA - no warranty

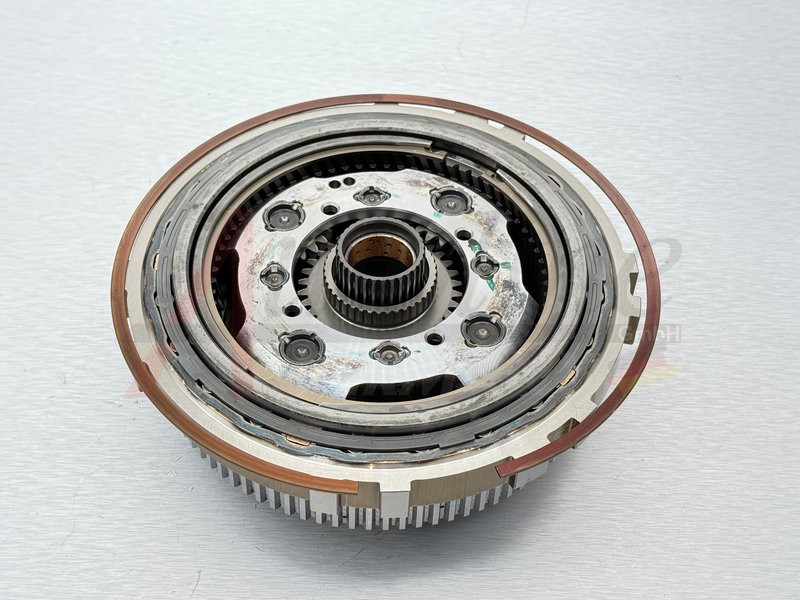

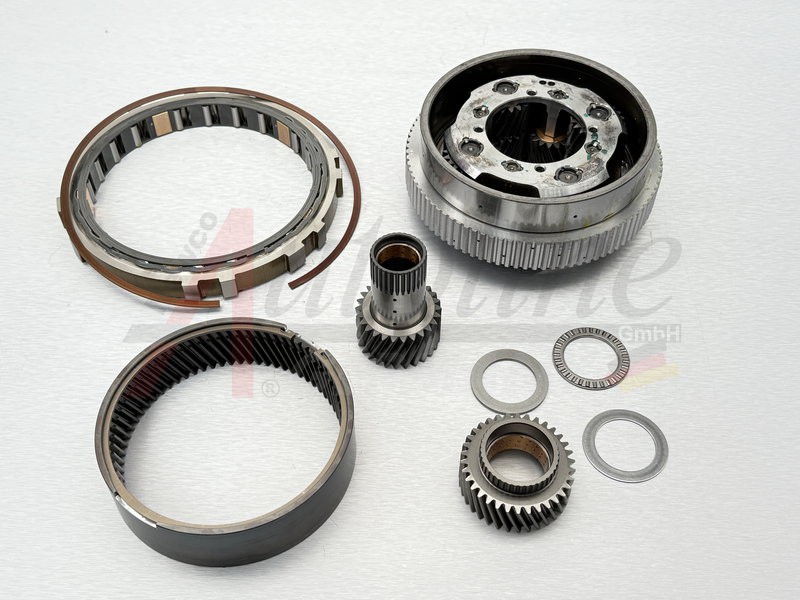

PSA - complete rear planetary
4x2 + 4 planetary gear pairs 18 teeth- no marks/18 teeth-1 mark + 15 teeth - 1 mark - inner diameter planetary drive approx 66,25 mm

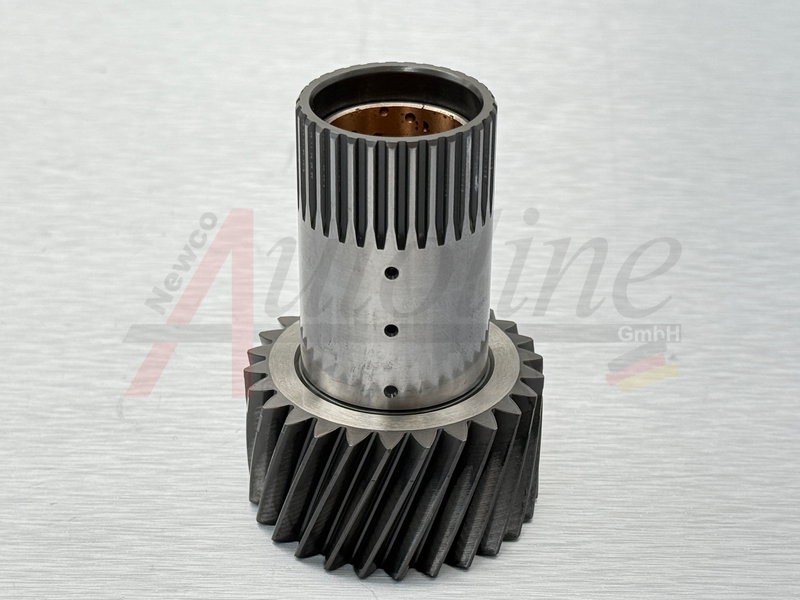

sun gear shaft 26 teeth - 1 long mark, gear wheel outer diameter 53,4 mm

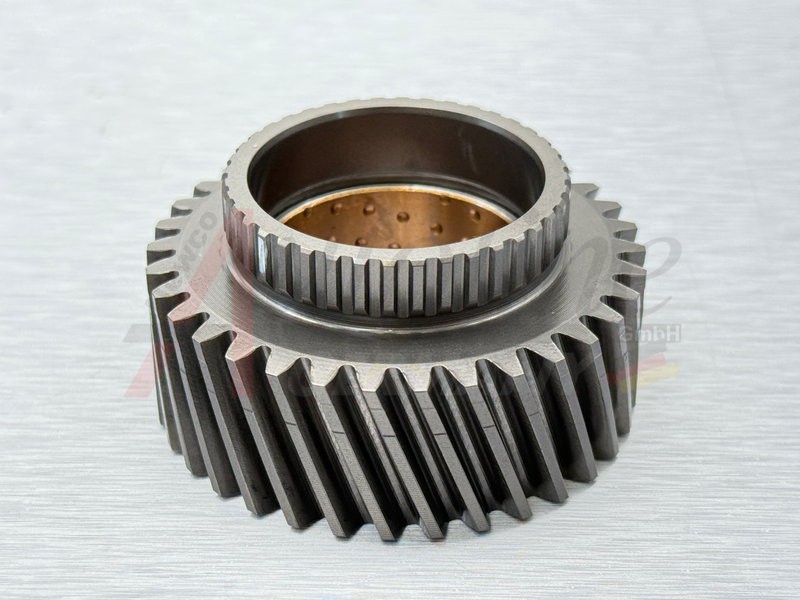

sun gear 34 teeth - 1long mark, gear wheel outer diameter 62,9 mm

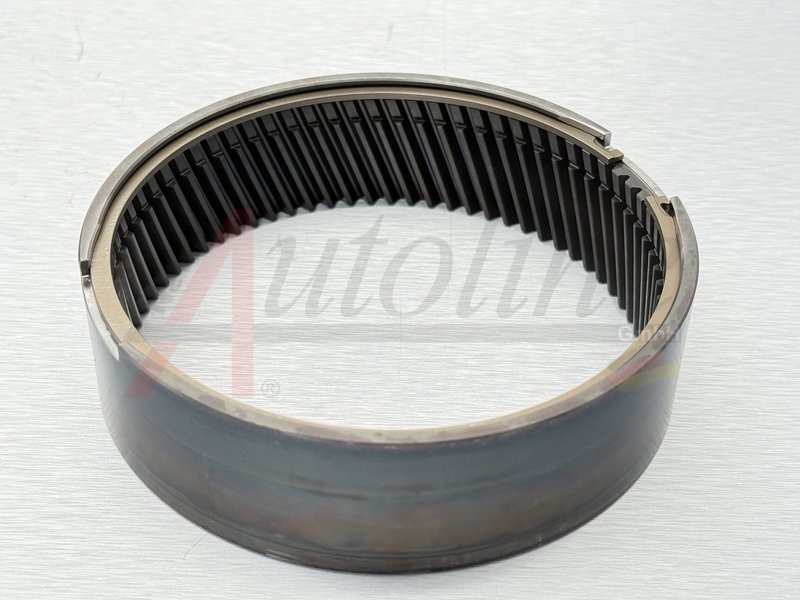

hollow gear 70 teeth
Taken from new gearboxes - no warranty - can only be ordered if goods are in stock - subject to prior sale.
Various executions of this part are available for these transmissions
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
The distinguishing features known to us to this day are stored for each article.
4x2 + 4 planetary gear pairs 18 teeth- no marks/18 teeth-1 mark + 15 teeth - 1 mark - inner diameter planetary drive approx 66,25 mm
sun gear shaft 26 teeth - 1 long mark, gear wheel outer diameter 53,4 mm
sun gear 34 teeth - 1long mark, gear wheel outer diameter 62,9 mm
hollow gear 70 teeth
Taken from new gearboxes - no warranty - can only be ordered if goods are in stock - subject to prior sale.
Various executions of this part are available for these transmissions
PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.
The distinguishing features known to us to this day are stored for each article.
rear planetary
1
AWF8G45 - PSA
View this Part on the following exploded Views
