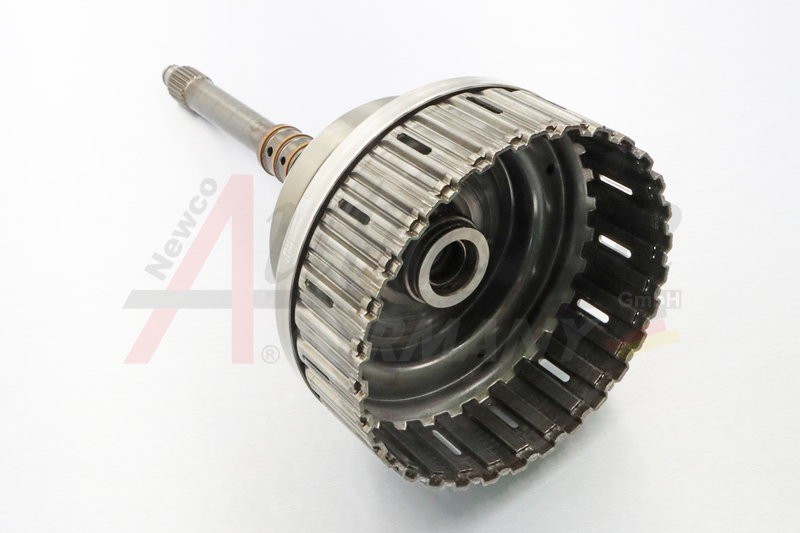

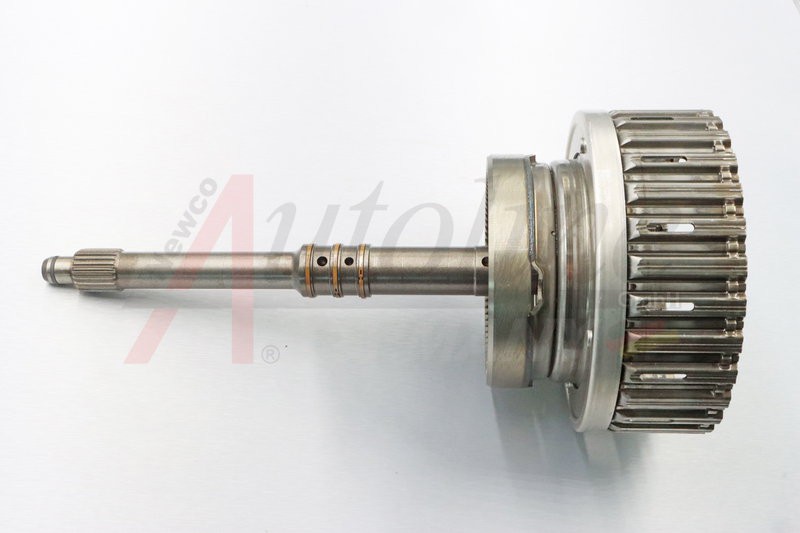

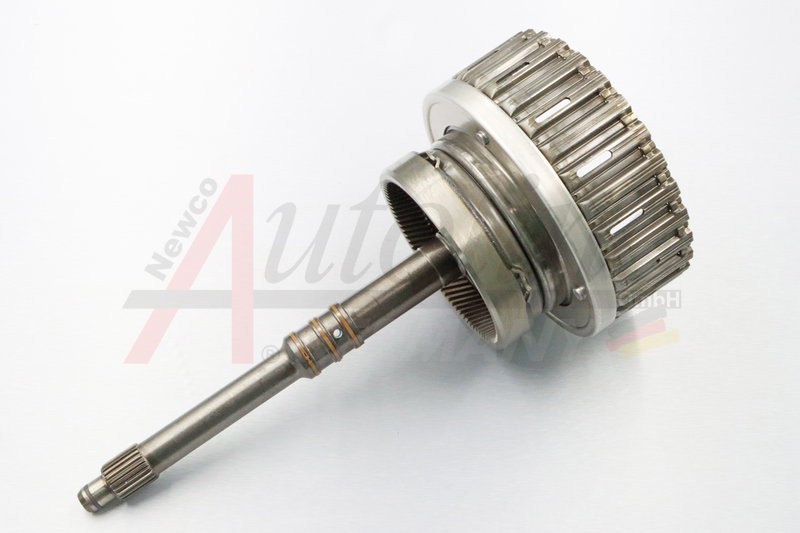

input shaft with C2 carrier without content

total length, approx. 379,5 mm
splining: 24 teeth, outer diameter approx. 25,+ mm, height of splining approx. 27 mm
distance from tip of shaft to splines approx. 20 mm
check ball in tip of shaft: no
splt seal ring on tip: yes

shaft C2D-722.9-3017 corresponding to 230 270 17 25 fits for specific transmission codes with
722.930 - 6+6 discs, with steel piston PIS-722.9-C2-39,7
722.931, 722.971 - 7+7 with steel piston PIS-722.9-C2-35,4
722.932 - 8+8 with steel piston PIS-722.9-C2-31,0

You can find detailed information on the different versions in our web catalog for this article under the heading "Documents (Technical Informations)"

Various executions of this part are available for these transmissions

PLEASE CHECK CAREFULLY BEFORE INSTALLATION. WE WILL NOT TAKE RESPONSIBILITY FOR DAMAGES RESULTING FROM THE INSTALLATION OF A WRONG SPARE PART/COMPONENT.

The distinguishing features known to us to this day are stored for each article.

used part - quality: no or just slight signs of use, item might be useable as it is - can be ordered only if in stock - subject to prior sale.

If bearings, bushings, seals, gaskets and washers are supplied they are free of charge as they may have to be replaced - missing or damaged items of this kind will not be replaced by us.

All used parts are delivered without warranty.


input shaft, C2
