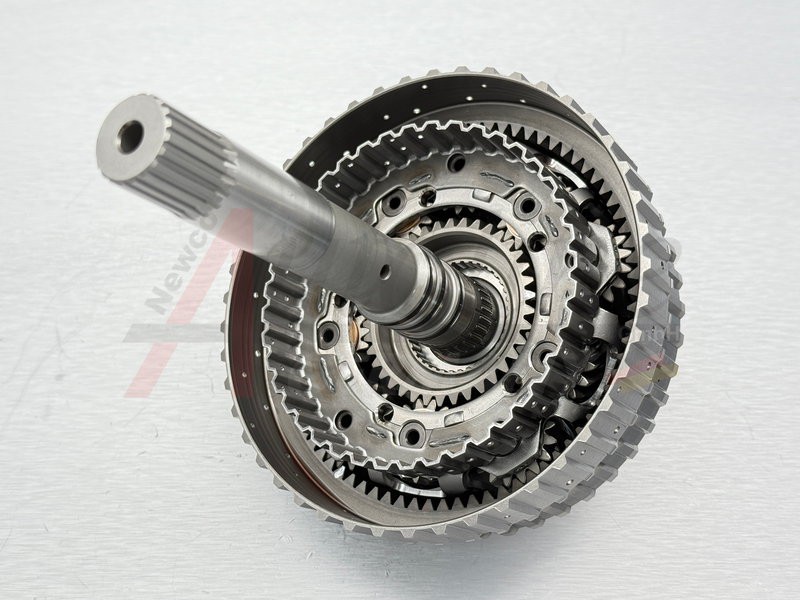

front planetary set

PSA - complete front planetary
total height: approx 216,5 mm
5 planetary gear pairs 17 - 1+1 mark /15 teeth - 1 mark
sun gear: 38 teeth , inner splining 37,
C4 height: 19,0 mm, 40 outer teeth
input shaft length: 163,05 mm
hollow gear: 78 teeth, carrier height: total approx52,0 mm
C3 hub height: 22,7 mm, 45 teeth - 1 mark
C1 hub height: approx 22,3/25,8 mm, 45 teeth

used part - quality: signs of use, item might need some work on it.- can be ordered only if in stock - subject to prior sale.

If bearings, bushings, seals, gaskets and washers are supplied they are free of charge as they may have to be replaced - missing or damaged items of this kind will not be replaced by us.

All used parts are delivered without warranty.

front planetary

Only for registered users

1

AWF8G30 (PSA)
