Transmissions & parts ATC450

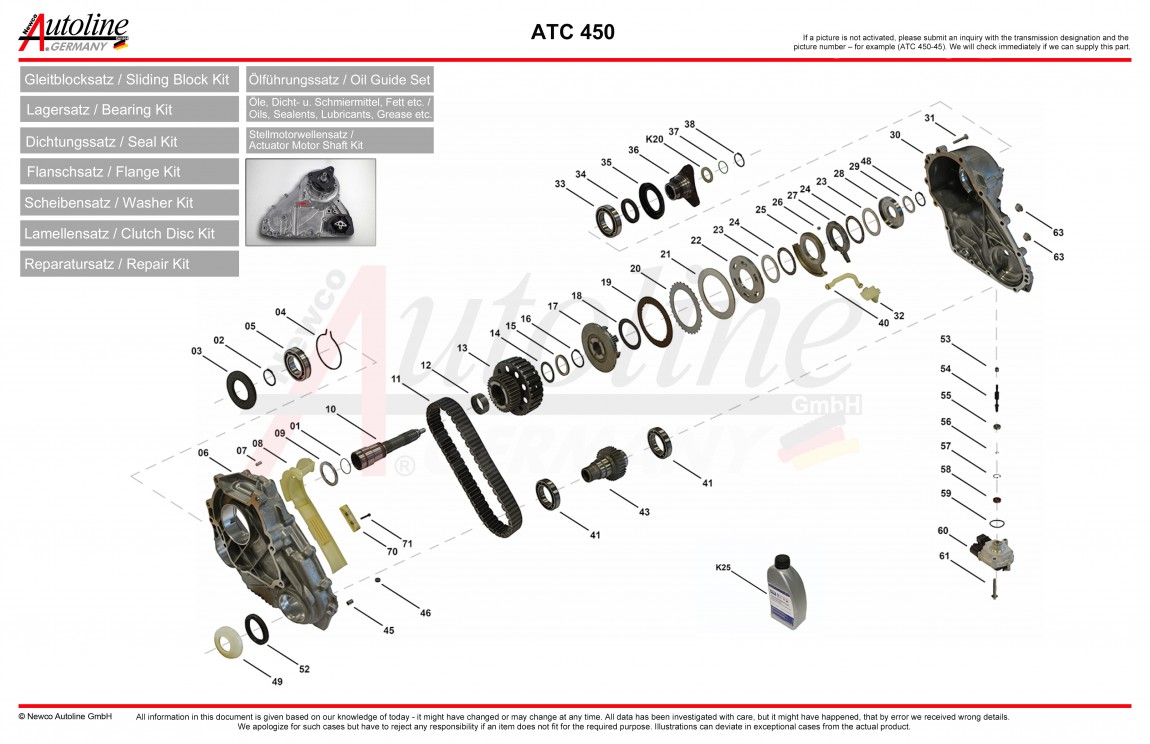

Exploded View ATC 450
Just click on the required part in the exploded view. You will get a list with matching parts of our catalogue.
Complete catalog of ATC450
Overhaul Kits
Picture A-TCK-ATC350/450
In stock
Autoline
A-TCK-ATC350/450
ATC350, ATC35L, ATC450 - transfer case
Picture no. on Exploded View: 01, 03, 34, 37, 52, 58, 59, 63, 63
more info
Pistons
Picture O-PIS-ATC350/450
In stock
OEM
O-PIS-ATC350/450
ATC350, ATC450, PL72ATC, 95B - transfer case
Picture no. on Exploded View: 22
more info
Bearings
Picture O-BBG-ATC-SPS-A
In stock
OEM
O-BBG-ATC-SPS-A (Old No. O-BBG-ATC450/5/7)
ATC450, ATC500, ATC700 - transfer case, sprocket shaft
Picture no. on Exploded View: 41, 41
more info
Oil Seals, Metal Clad Seals
Picture O-RFS-ATC-RR-A
In stock
OEM
O-RFS-ATC-RR-A
ATC13, ATC300, ATC350, ATC35L, ATC450, ATC45L, Maserati ATC - transfer case Merce [...]
Picture no. on Exploded View: 34
more info
Picture O-FFS-ATC-A
In stock
OEM
O-FFS-ATC-A
ATC300, ATC350, ATC35L, ATC400, ATC450, ATC500, ATC700 - transfer case, front output [...]
Picture no. on Exploded View: 49, 52
more info
Picture O-ISL-ATC-A
In stock
OEM
O-ISL-ATC-A
ATC300 - ATC350 - ATC35L - ATC400 - ATC450 - ATC45L - ATC500 - ATC700 - ITC DD295 - M [...]
Picture no. on Exploded View: 03
more info
Picture O-OSL-ATC350-ACT
On order
OEM
O-OSL-ATC350-ACT
ATC350, ATC35L, ATC450, ATC45L, PL72ATC, 95B, Hyundai ATC, Maserati ATC - actuator mo [...]
Picture no. on Exploded View: 58
more info
O-Rings
Picture A-ORG-040056
In stock
Autoline
A-ORG-040056
Ecomat: wiring harness // 6HP and 8HP): guide sleeve / connector plug //BMW transfer [...]
Picture no. on Exploded View: 59
more info
Picture A-ORG-102291
In stock
Autoline
A-ORG-102291
Mercedes ML163: steering housing / steering rack - BMW: transfer case Maserati ATC, [...]
Picture no. on Exploded View: 37
more info
Picture A-ORG-116752
In stock
Autoline
A-ORG-116752
ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, Maserati-ATC - transfer case, main shaft
Picture no. on Exploded View: 01
more info
Picture A-ORG-130734
In stock
Autoline
A-ORG-130734
transfer case housing, screw plug
Picture no. on Exploded View: 63, 63
more info
Washers
Picture O-SHI-ATC450/45L
On request
OEM
O-SHI-ATC450/45L
ATC450, transfer case
Picture no. on Exploded View: 08
more info
Picture O-TWS-ATC350/450
On request
OEM
O-TWS-ATC350/450
ATC350, ATC450, PL72ATC, 95B
Picture no. on Exploded View: 23, 23
more info
Picture O-TWS-ATC450
On request
OEM
O-TWS-ATC450
ATC450, transfer case
Picture no. on Exploded View: 14
more info
Picture O-WSK-ATCXXX-A
On request
OEM
O-WSK-ATCXXX-A
Maserati ATC, ATC300, ATC350, ATC450 - transfer case
more info
Circlips, Snap Rings
Picture O-RET-ATC-xx
In stock
OEM
O-RET-ATC-xx
ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, W61G, Hyundai-ATC, Ma [...]
Picture no. on Exploded View: 38
more info
Picture O-RET-ATC-xx-1
In stock
OEM
O-RET-ATC-xx-1
ATC300, ATC350, ATC35L, ATC400, ATC450, ATC45L, ATC500, ATC700, W61G, Hyundai-ATC, Ma [...]
Picture no. on Exploded View: 04
more info
Picture O-RET-ATC-xx-2
In stock
OEM
O-RET-ATC-xx-2
ATC350, ATC35L, ATC450, ATC45L, PL72ATC, 95B, Hyundai ATC, Maserati ATC - transfer case
Picture no. on Exploded View: 48
more info
Picture O-RET-ATC350/450
In stock
OEM
O-RET-ATC350/450
ATC350, ATC450 - transfer case: hub
Picture no. on Exploded View: 16
more info
Solenoids
Picture O-SOL-ATC-all-1
In stock
OEM
O-SOL-ATC-all-1
Picture no. on Exploded View: 46
more info
Picture O-SOL-ATC35L/45L
On request
OEM
O-SOL-ATC35L/45L
ATC35L, ATC45L, Hyundai ATC, Maserati ATC, MFA RDM ATC300, ATC350, ATC13-1, ATC400, [...]
more info
Actuators / Actuator Motors
Picture CO-ACT-ATC-153
In stock
Core - for parts recovery only
CO-ACT-ATC-153
ATC350, ATC450, ATC35L, ATC45L - used part - no warranty
more info
Picture O-ACT-ATC-153
In stock
OEM
O-ACT-ATC-153
ATC350, ATC450, ATC35L, ATC45L - transfer case
Picture no. on Exploded View: 60
more info
Picture O-ACT-ATC-762
In stock
OEM
O-ACT-ATC-762 (Old No. O-ACT-ATC45L)
ATC350 - ATC450 - ATC35L - ATC45L - there are exceptions
Picture no. on Exploded View: 60
more info
Show elements
Results 1 - 24 from 61
