Transmissions & parts PL72T

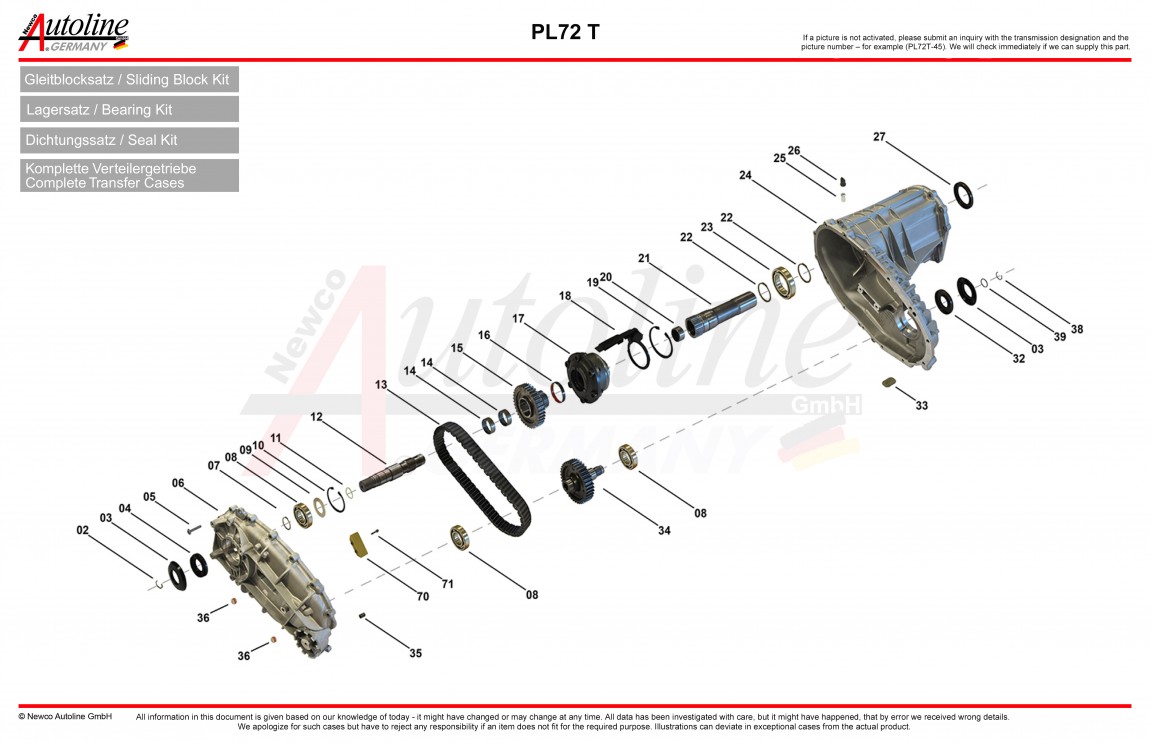

Exploded View PL72 T
Just click on the required part in the exploded view. You will get a list with matching parts of our catalogue.
Complete catalog of PL72T
Overhaul Kits
In stock
Autoline
A-TCK-0BU
0BU, PL72T - transfer case / center differential - Amarok, Touareg, Q7
In stock
Autoline
A-TCK-0BU-WMG
0BU, PL72T - Amarok with permanent AWD (4x4)
Sleeves
On request
OEM
O-SLV-PL72T
PL72T, BW4430, 0AQ, 95B - transfer case
Picture no. on Exploded View: 25
Bearing Kits
In stock
OEM
O-BRK-PL72T
PL72T - transfer case
Picture no. on Exploded View: 08, 14, 16, 20, 23, 08, 08
Bearings
In stock
OEM
O-BBG-116731
ATC400: transfer case / CTX: primary bearing behind the oil pump
Picture no. on Exploded View: 08, 08
In stock
OEM
O-BBG-ATC-SPS-A (Old No. O-BBG-ATC450/5/7)
ATC450, ATC500, ATC700 - transfer case, sprocket shaft
Picture no. on Exploded View: 23
Oil Seals, Metal Clad Seals
In stock
OEM
O-RFS-0BU
0BU, PL72 - rear flange shaft / housing
Picture no. on Exploded View: 04
In stock
Genuine
O-OSL-0BU-IS
0BU, PL72ATC, PL72T - input shaft, transmission to transfer case
Picture no. on Exploded View: 27
In stock
OEM
O-OSL-0BU-OUFR
0BU transfer case to front axle diff
Picture no. on Exploded View: 32
O-Rings
In stock
Autoline
A-ORG-127236
0C7 transfer case - outputshaft to front axle/final drive PL72 - mainshaft, front
Picture no. on Exploded View: 39
In stock
Autoline
A-ORG-127247
0BU - output shaft transfer case to front axle diff
Picture no. on Exploded View: 11
Washers
On request
OEM
O-LOR-PL72ATC
PL72ATC ITC-PLA, transfer case
Picture no. on Exploded View: 19
On request
OEM
O-SHI-PL72ATC
Picture no. on Exploded View: 09
Circlips, Snap Rings
On request
OEM
O-RET-PL72ATC
Picture no. on Exploded View: 02
On request
OEM
O-RET-PL72ATC-1
VG150E, transfer case
Picture no. on Exploded View: 10
On request
OEM
O-RET-PL72ATC-2
Picture no. on Exploded View: 07
On request
OEM
O-RET-PL72ATC-3
PL72ATC, PL72T - transfer case
Picture no. on Exploded View: 22, 22
On request
OEM
O-RET-PL72ATC-4
Picture no. on Exploded View: 38
Solenoids
On request
OEM
O-SOL-PL72ATC
Picture no. on Exploded View: 33
Plastic Shields and Guides
In stock
OEM
O-SBK-PL72-div
ATC450 / DCS / PL72T / PL72ATC - transfer case
Picture no. on Exploded View: 70, 71
On request
OEM
O-SBK-PL72T-1
PL72T - transfer case
Picture no. on Exploded View: 70, 71
Shafts, Transmission
On request
OEM
O-IPS-PL72T-1
Picture no. on Exploded View: 21
On request
OEM
O-IPS-PL72T-2
PL72T
Picture no. on Exploded View: 21
On request
OEM
O-IPS-PL72T-3
PL72T
Picture no. on Exploded View: 21
Show elements
Results 1 - 24 from 53
